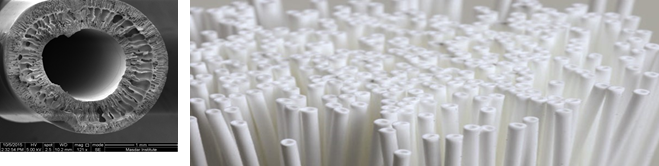

Origin Pure Super Hydrophilic PVDF Hollow Fiber membrane is produced by patent production, which leads to be small pore size, uniform hole distribution, high efficiency ratio and high bacteria remove.
Feature:
- UF membrane could remove bacteria, virus, organic substance, algae etc
- Hydrophilic PVDF hollow fiber membrane, stable chemical characteristic, anti-contaminant, easy to clean, long term lifespan;
- Outside-in flow have a widely turbidity, reduce pretreatment process
- Widely used for river water, mineral water, sea water desalination and industrial water treatment.

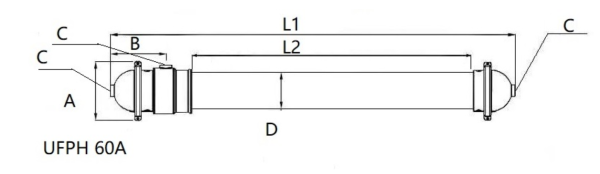

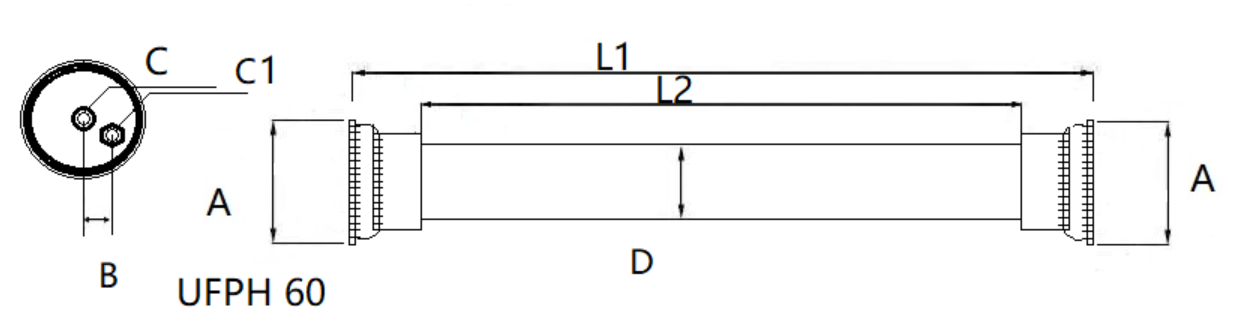

| Item |
L1 |
L2 |
A |
B |
C/C1 |
D |
| UFPH 60A |
2340mm |
2000mm |
345mm |
320mm |
C=1-1/2”NPT |
216mm |
| UFPH 60 |
2130mm |
1840mm |
260mm |
65mm |
C=1-1/2”NPT
C1=1”NPT |
216mm |
| Specification |
UFPH 60A |
UFPH 60 |
| Data Base |
Element Dimension mm |
Dia 216*2340 |
Dia 216*2130 |
| Surface Area㎡ |
60 |
60 |
| Material |
PVDF |
| Pore Size |
0.03um |
| Fiber Dimemsion |
0.7/1.3 |
| Cage material |
UPVC |
| Seal material |
ABS |
| Operation Data |
Store material |
Dry or Wet |
| Turbidity |
<100 |
| Work Pressure |
0.1~0.3 |
| Design Flux |
35~135 |
| Flux mean |
Dead end/Cross Flow |
| Recycle time |
20~60 |
| Backwash mean |
Air Water Wash |
| Backwash Time |
2~3 |
| Backwash Pressure |
<0.25 |
