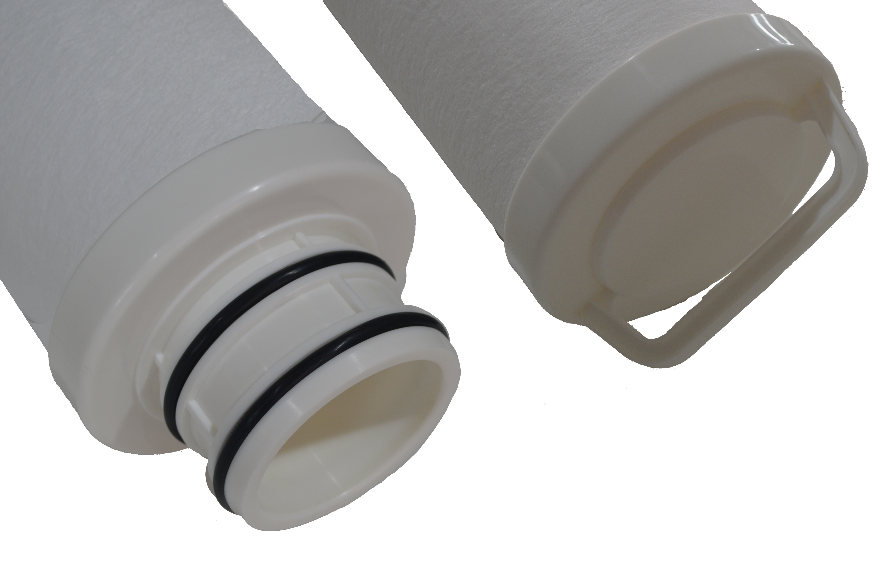

SUPFLUX-E Series High Flow------Replace FON Type High Flow
SUPFLUX-E Series High Flow cartridge filter is designed with Polypropylene media, which can replace FON Adaptor HF filter cartridge. It’s an ideal for per filtration and clarification in Power plant and Desalination plant etc.
Feature:
- 100% Polypropylene media with PP hardware
- High Flow filter for fewer change-outs and lower maintenance cost
- Suitable for FON Type HF Housing flexible installation and assemble in base of different usage condition
- High surface area and efficiency ratio provides higher loading capacity for longer lifespan
- Thermal welding process and free of any adhesive
Application:
- Sea Water Desalination
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- Power Plant
Material Construction:
Filter Media | PP Pleated/PP Melt Blown |
Supporter | PP No Woven Fiber |
Core | No Core/PP Core |
Cage | No Cage/ PP Cage/ Netting Cage |
Oring | Silicone, EPDM, NBR, Viton |
Specification:
Length | 40’’,60’’ |
Micron Rate | 1μm~20μm |
Diameter -OD | 145mm |
Operation Condition:
Max. Pressure Drop | 0.35Mpa@25℃
0.25Mpa@120℃ |
Max. Working Temp. | 80℃ |
Change-Out ∆P | 0.25Mpa |
Order Information:
Application | Type | Material | Length | Micron | Adaptor | Sealing | Cage |
C | HF | EP | 40 | F | D | S | NC |
F-Food&Beverage
C-Chemical I-Industrial Water Treatment |
HF-High Flow | EP1-PP Nominal
EP2-PP Absolute |
20-20‘’
40-40‘’ 60-60‘’ |
F-1.0μm
H-5.0μm I-10.0μm J-20.0μm |
D-Double Oring | S-Silicone
E-EPDM N-NBR V-Viton |
N—No Cage*
NC- Net Cage PP-PP Cage |
*No Cage just on Melt Blown media
