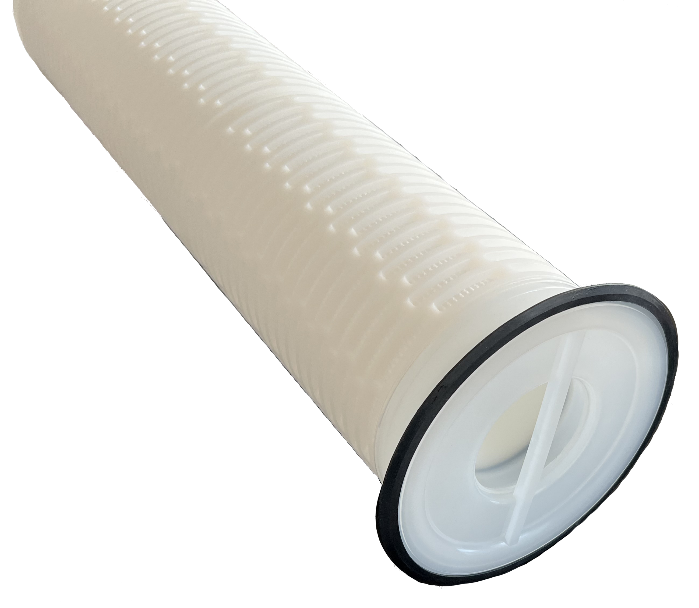

SUPFLUX-B Series Bag Type High Flow cartridge filter is designed with Polypropylene media. As Pall Marksman filter cartridge’s perfect equivalent in market, it can be installed as bag filter in bag filter housing. It’s an ideal filtration in Ink and Coatings, Beverage and Petrol Oil fields etc.
Feature:
- 100% Polypropylene filter media
- High Flow filter for fewer change-outs and lower maintenance cost
- Perfectly assembled into bag filter housing
- High surface area and efficiency ratio provides higher loading capacity for longer lifespan
- Thermal welding process and free of any adhesive
Application:
- Sea Water Desalination
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- Power Plant
Material Construction:
| Filter Media |
Polypropylene/Glass Fiber |
| Supporter |
PP No Woven Fiber |
| Core |
Polypropylene |
Specification:
| Length |
Size#1(450mm)/Size#2(810mm) |
| Micron Rate |
1.0μm~20μm |
| Diameter -OD |
6.0‘’(152mm) |
Operation Condition:
| Max. Pressure Drop |
0.3Mpa@25℃
0.25Mpa@120℃ |
| Max. Working Temp. |
80℃ |
| Change-Out ∆P |
0.25Mpa |
