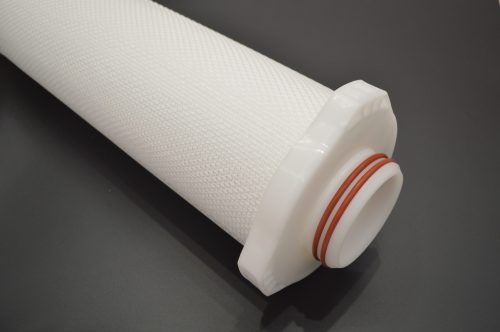

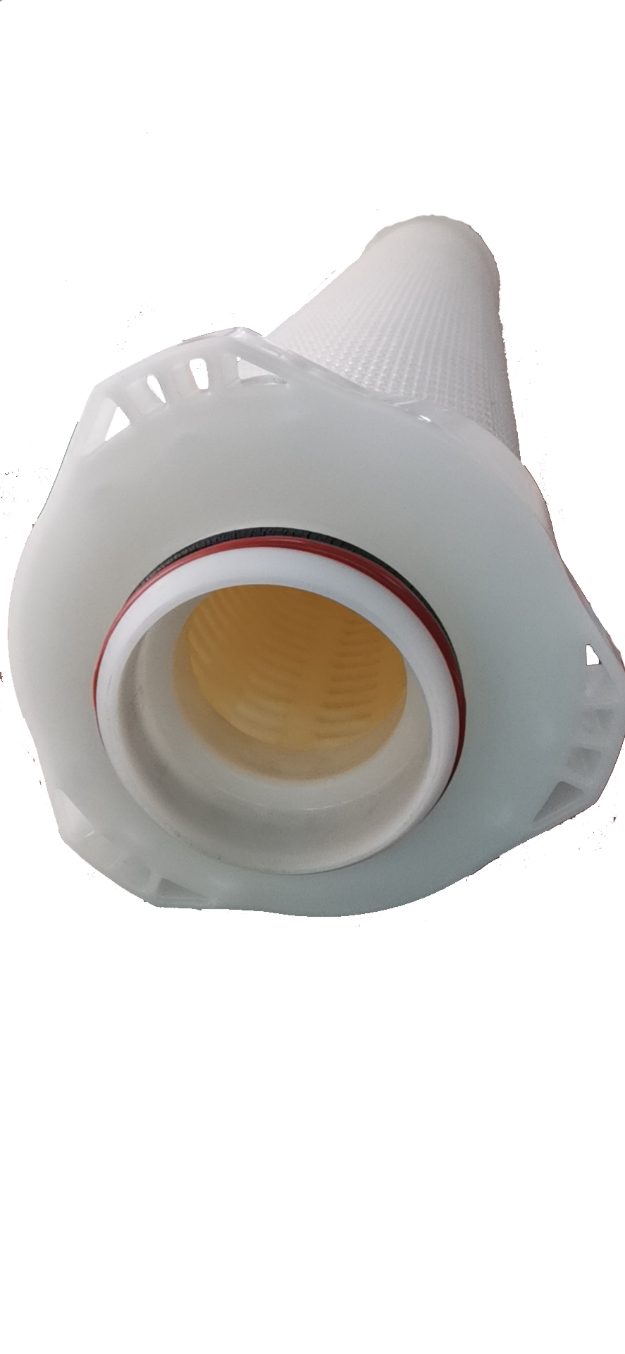

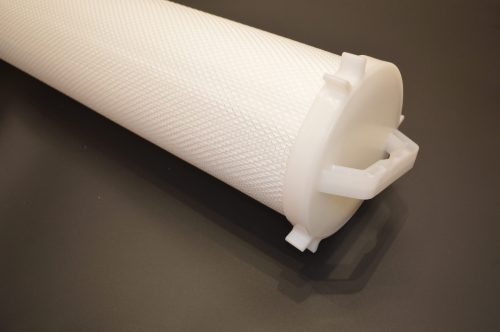

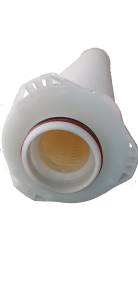

SUPFLUX-A Series High Flow Cartridge Filter
SUPFLUX-A Series High Flow------Replace Pentair AquaLine High Flow

SUPFLUX-A Series High Flow cartridge filter is designed with Polypropylene media, which can replace Pentair AquaLine filter cartridge. It’s an ideal for per filtration and clarification in Power plant and Desalination plant etc.

Feature:

  1. 100% Polypropylene filter media with PVC hardware
  2. High Flow filter for fewer change-outs and lower maintenance cost
  3. Suitable for FRP Housing flexible installation and assemble in base of different usage condition
  4. High surface area and efficiency ratio provides higher loading capacity for longer lifespan
  5. Thermal welding process and free of any adhesive

Application:

  • Sea Water Desalination
  • Amine
  • Petro Chemical
  • Solvent based
  • paints & coatings
  • Power Plant

Material Construction:

Filter Media PP Pleated/GF Pleated
Supporter PP No Woven Fiber
Cage PP Cage
Specification
Length 20’’,40’’,60’’
Micron Rate 1μm~20μm
Diameter -OD 165mm

Operation Condition:

Max. Pressure Drop 0.35Mpa@25℃

0.25Mpa@120℃

Max. Working Temp. 80℃
Change-Out ∆P 0.25Mpa

Order Information:

Application Type Material Length Micron Adaptor Sealing Cage
C HF AP 40 F D S N
F-Food&Beverage

C-Chemical

I-Industrial Water Treatment

HF-High Flow AP1-PP Nornimal

AP2-PP Absolute

AG-Glass Fiber

20-20‘’

40-40‘’

60-60‘’

F-1.0μm

H-5.0μm

I-10.0μm

J-20.0μm

D-Double Oring S-Silicone

E-EPDM

N-NBR

V-Viton

NC= Net Cage
