STERIFLUX® Series Mini Pleated------Pall, Millipore, Sartorius, Parker Alternatives

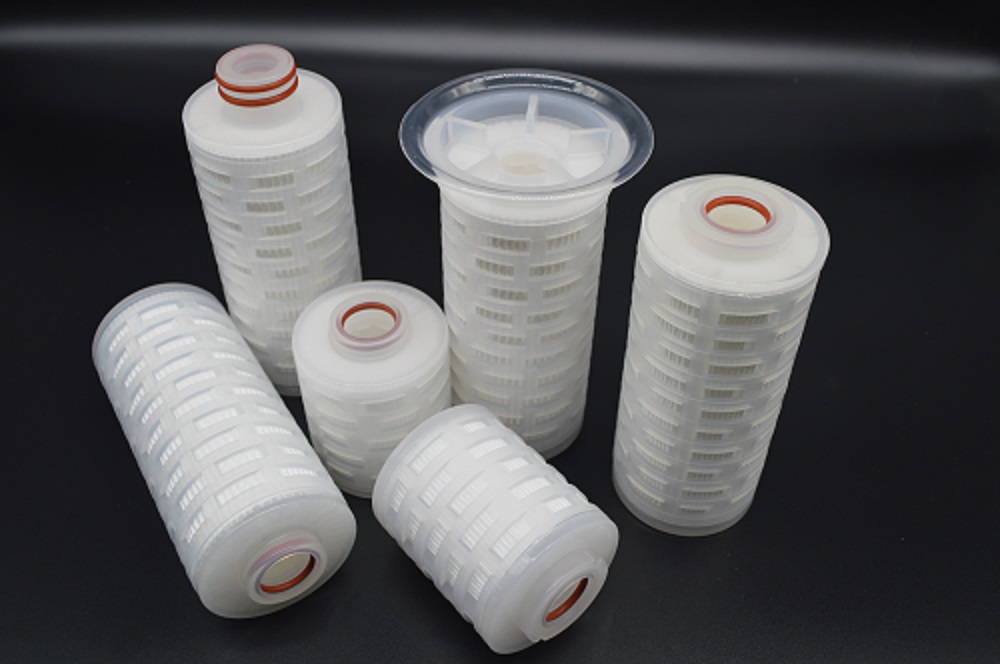

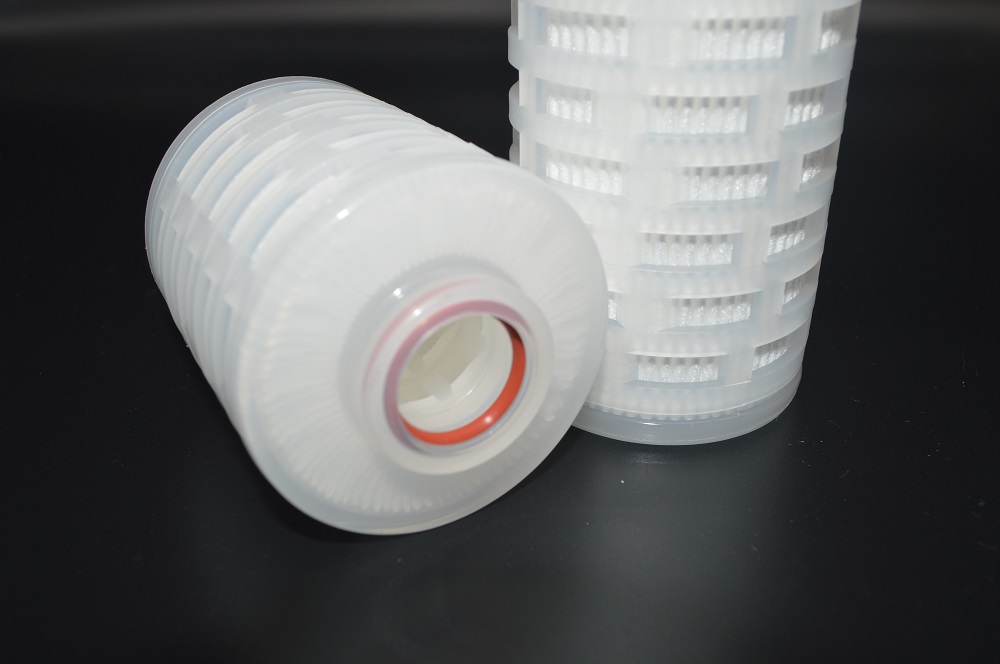

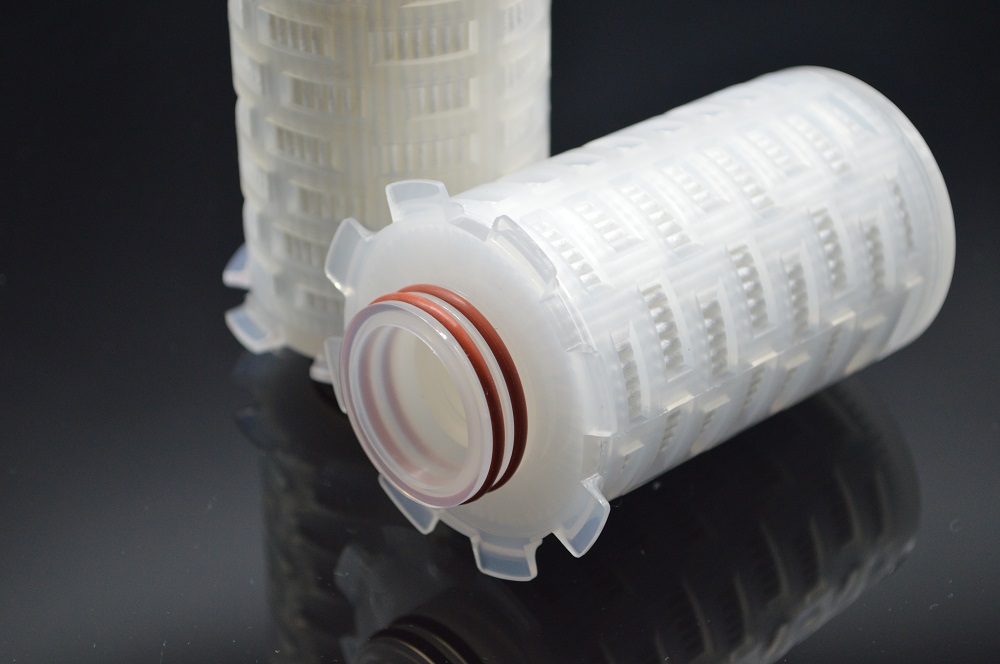

STERIFLUX® Series Mini Cartridge Filter own wide range of filter media for utilizing in pharma, biotechnology, lifescience and semiconductor application process etc. Perfect Equivalent on Junior, SLK, MiniCap, Optseal etc.
Feature:
- 100% Integrity test for excellent performance
- Different filtration ratings to meet various application requirement
- Low extractable and protein bonded feature
- Suitable for organic solvents, acids and chemicals
Application:
- Fine Chemical
- Food and Beverage
- Pharmaceutical
- Water Treatment
- Fermentation
- Semiconductor
Material Construction:
| Filter Media | PES, PTFE, PP, Nylon, PVDF |
| Supporter | PP No Woven Fiber |
| Cage | PP |
| Core | PP |
Specification:
| Length | 1.25’’, 2.5’’, 5’’ |
| Micron Rate | 0.1μm~10.0μm |
| Diameter -OD | 56mm |
| Surface Area | 500cm², 1200cm², 2100 m² |
Bacteria Challenge:
| B.diminuta | LRV>7 | 0.22μm |
| Serratia Marcescens | LRV>7 | 0.45μm |
Operation Condition:
| Max. Pressure Drop | 0.35Mpa@25℃ |
| 0.20Mpa@75℃ | |
| Max. Working Temp. | 80℃ |
| Change-Out ∆P | 0.25Mpa |
| Sterilization | 150times Autoclave @121℃ 30mins |
All components meet the EU and USA requirements for Food Contact Use in accordance with CFR (Code of Federal Regulations) Title 21 and EC/1935/2004 and subsequent amendments.
 |
 |
 |
 |
 |
| 6T | 8T | 8BF | 3TF | DT |
Order Information:
| Application | Type | Material | Length | Micron | Adaptor | Sealing |
| F | MF | PP | 05 | F | 6T | S |
| M-BioPharma
F-Food&Beverage C-Chemical I-Industrial Water Treatment |
PF-MIni Filter | PP2-Absolute PP
SS-Hydrophilic PES TB-Hydrophobic PTFE VL-Hydorphilic PVDF NY1-Nylon66 NY2-Nylon66 Positive Charged |
01-1.25‘’
02-2.5‘’ 05-5‘’ |
Z-0.05μm
A-0.1μm B-0.2μm B2-0.22μm C-0.45μm C5-0.5μm D-0.65μm E-0.8μm F-1.0μm F2-1.2μm |
6T-116/Flat
6TB-116/Flat w/ Bayonet 6TB- 116/Flat w/ Bayonet &Insert 8T-118/Flat 8BF-118 Flower/Flat 3TF-213 Flower/Flat DT-Disc/Flat WS-W Style 4T-Flag w/ 4Leg |
S-Silicone
E-EPDM N-NBR V-Viton F-Encapsuled Viton K-Encapsuled Silicone |
