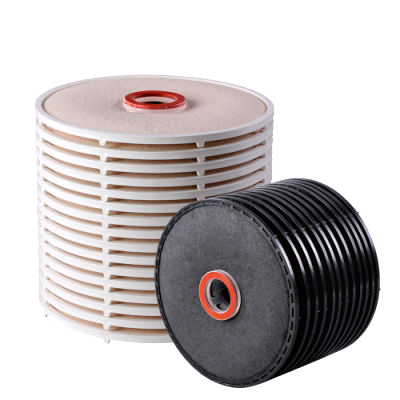

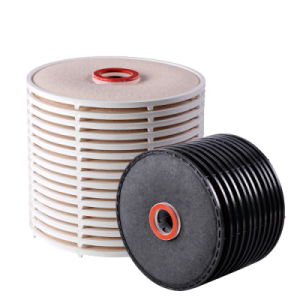

STERIFLUX® Series Lenticular Filter with good cost and performance rate, ideal for pre filtration and clarification in different application.
Feature:
- Longer Lifespan with higher flow rate for reducing operation cost.
- Easy and reliable handling Rigid external clips prevent damage of the filter sheet during module loading and unloading.
- No filter sheet deformities after heat treatment.
- Handling of versatile filtration tasks. Polymer design for higher temperature and chemical compatibility.
- High performance through full utilization of filter surface area.
Application:
- Fine Chemical
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- High Temp Water
Material Construction:
| Surface Media |
Natural Diatomaceous Earths, Active Carbon |
| Material |
Cellulose fibers, Resins, Perlite |
| Supporter |
PP No Woven Fiber |
| Core |
PP |
| Adaptor |
DOE, 222/Flat |
| Sealing |
Silicone, EPDM, Viton |
Specification:
| Micron Rate |
0.1μm~10μm |
| Diameter -OD |
8’’, 12’’,16’’ |
| Construction |
7cells, 9cells, 12cells, 14cells, 15cells, 16cells |
Operation Condition:
| Max. Pressure Drop |
0.24Mpa@25℃ |
|
0.16Mpa@75℃ |
| Max. Working Temp. |
80℃ |
| Change-Out ∆P |
0.20Mpa |
| Sterilization |
20times Autoclave @121℃ 30mins |
All components meet the EU and USA requirements for Food Contact Use in accordance with CFR (Code of Federal Regulations) Title 21 and EC/1935/2004 and subsequent amendments.
