Products

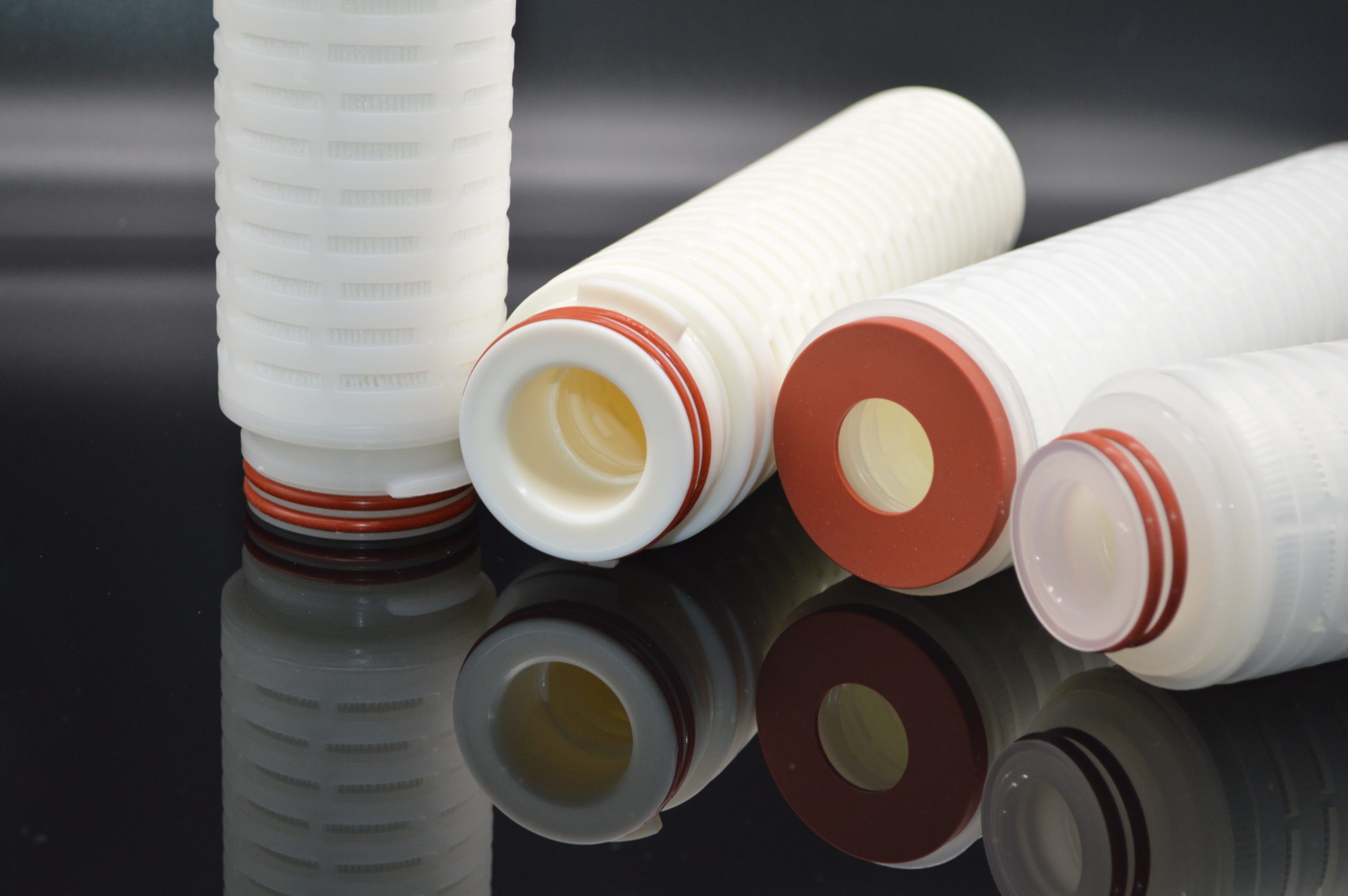

STERIFLUX® Series PVDF Pleated------Lower Protein Bonding And High Flow Rate
STERIFLUX® Series Hydrophilic PVDF membrane cartridge filter use hydrophilic PVDF membrane as filter media with PP hardware. PVDF membrane has low protein bonding and high flow rate.
Feature:
- 100% Integrity test for excellent performance
- Different filtration ratings to meet various application requirement
- Low extractable and protein bonded feature
- Suitable for organic solvents, acids and chemicals
Application:
- Fine Chemical
- Food and Beverage
- Pharmaceutical
- Water Treatment
- Fermentation
- Semiconductor
Material Construction:
| Filter Media | Hydrophilic PVDF |
| Supporter | PP No Woven Fiber |
| Cage | PP/SS 304/SS 316 |
| Core | PP/SS 304/SS 316 |
Specification:
| Length | 5’’, 10’’, 20’’, 30’’,40’’ |
| Micron Rate | 0.1μm~10.0μm |
| Diameter -OD | 65mm, 69mm, 83mm, 114mm |
| Surface Area | 0.4m², 0.6m², 1.15 m²,2.0 m² |
Bacteria Challenge:
| B.diminuta | LRV>7 | 0.22μm |
| Serratia Marcescens | LRV>7 | 0.45μm |
Operation Condition:
| Max. Pressure Drop | 0.42Mpa@25℃ |
| 0.20Mpa@75℃ | |
| Max. Working Temp. | 80℃ |
| Change-Out ∆P | 0.25Mpa |
| Sterilization | 150times Autoclave @121℃ 30mins |
All components meet the EU and USA requirements for Food Contact Use in accordance with CFR (Code of Federal Regulations) Title 21 and EC 1935/2004 and subsequent amendments.
