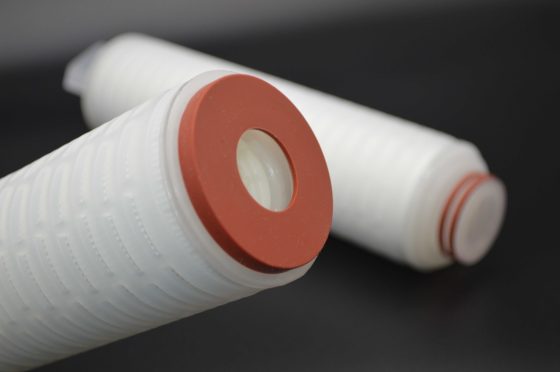

STERIFLUX® Series PTFE Pleated------ Wide Range Of Aggressive Gas And Liquid
STERIFLUX® Series PTFE membrane cartridge filter are designed specifically for use in a wide range of aggressive gas and liquid processing applications and available for most of Chemical and organic solvent, its Hydrophobic PTFE membrane makes this cartridge an ideal choice for systems requiring excellent compatibility, reliability and a consistently high quality filtrate.
Feature:
- Excellent Chemical compatibility
- Widely Porosity rate
- Low extractible rate
- 100% Integrity test
- Thermally bonded and adhesive free
Application:
- Fine Chemical
- Food and Beverage
- Pharmaceutical
- Water Treatment
- Fermentation
- Semiconductor
Material Construction:
| Filter Media | Hydrophobic PTFE |
| Supporter | PP No Woven Fiber |
| Cage | PP/SS 304/SS 316 |
| Core | PP/SS 304/SS 316 |
Specification:
| Length | 5’’, 10’’, 20’’, 30’’,40’’ |
| Micron Rate | 0.1μm~10.0μm |
| Diameter -OD | 65mm, 69mm, 83mm, 114mm |
| Surface Area | 0.4m², 0.6m², 1.15 m²,2.0 m² |
Bacteria Challenge:
| B.diminuta | LRV>7 | 0.22μm |
| Serratia Marcescens | LRV>7 | 0.45μm |
Operation Condition:
| Max. Pressure Drop | 0.42Mpa@25℃ |
| 0.20Mpa@75℃ | |
| Max. Working Temp. | 80℃ |
| Change-Out ∆P | 0.25Mpa |
| Sterilization | 150times Autoclave @121℃ 30mins |
All components meet the EU and USA requirements for Food Contact Use in accordance with CFR (Code of Federal Regulations) Title 21 and EC/1935/2004 and subsequent amendments.
