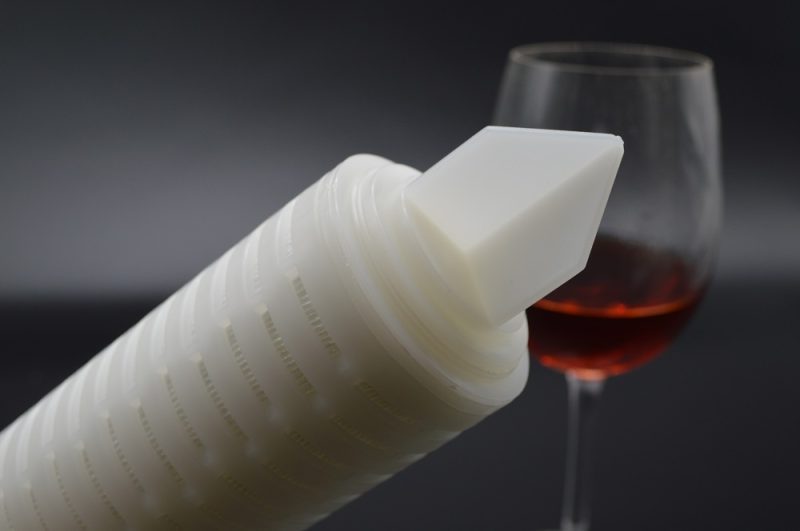

STEELFLUX™ Series PES Pleated------Greater Bacteria and Particle Removal
STEELFLUX™ Series PES membrane cartridge filter with highly asymmetric PES membrane and PP hardware. Using thermal bonding process, contain no adhesive and surfactant. All filter with 100% Integrity test, it provide greater bacteria and particle removal at high flow rate and low pressure drop.
Feature:
- Excellent chemical compatibility
- Different filtration ratings to meet various application requirement
- Deep filtration construction, longer service life, lower cost
- Thermal welding process and free of any adhesive
- Larger surface area, resulting in low clean Δp and higher dirty holding capacity
Application:
- Fine Chemical
- Food and Beverage
- Pharmaceutical
- Water Treatment
- Fermentation
- Semiconductor
Material Construction:
| Filter Media | PES |
| Supporter | PP No Woven Fiber |
| Cage | PP/SS 304/SS 316 |
| Core | PP/SS 304/SS 316 |
Specification:
| Length | 5’’, 10’’, 20’’, 30’’,40’’ |
| Micron Rate | 0.1μm~10.0μm |
| Diameter -OD | 65mm, 69mm, 83mm, 114mm |
| Surface Area | 0.4m², 0.6m², 1.15 m²,2.0 m² |
Bacteria Challenge:
| B.diminuta | LRV>7 | 0.22μm |
| Serratia Marcescens | LRV>7 | 0.45μm |
Operation Condition:
| Max. Pressure Drop | 0.42Mpa@25℃ |
| 0.20Mpa@75℃ | |
| Max. Working Temp. | 80℃ |
| Change-Out ∆P | 0.25Mpa |
| Sterilization | 150times Autoclave @121℃ 30mins |
All components meet the EU and USA requirements for Food Contact Use in accordance with CFR (Code of Federal Regulations) Title 21 and EC/1935/2004 and subsequent amendments.
