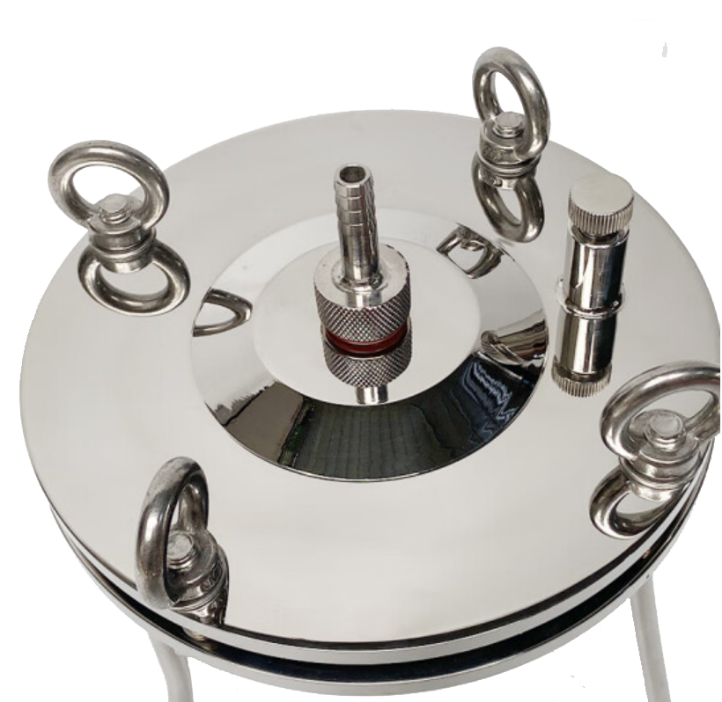

STEELFLUX™ Series Membrane Housing------ Liquid Sanitary Disc Housing
STEELFLUX™ Series Membrane Housing------ Liquid Sanitary Disc Housing

STEELFLUX™ Series Liquid Sanitary Disc Holder includes general pressure and high pressure design, good performance and easy to install. It is good at forward pressure and backward pressure process. It’s widely used in small volume pure, sterile or protein filtration.

Feature:

  1. Special fabrication condition, auto-manufacturing, meet ISO-2852 Standard
  2. Machinery polishing up to 0.4μm and inner surface to 0.3μm, electrical polishing is available
  3. Pharma Grade Silicone, Viton, EPDM and PTFE gasket with widely chemical compatibility
  4. Meet sanitary grade and GMP requirement

Application:

  • Peptone supplemented culture media
  • Serum containing cell culture media
  • Ophthalmic solutions
  • Buffers
  • Ultrapure water
Operation Condition
Max. Pressure Drop 0.20Mpa@25℃
Max. Working Temp. 100℃
Sterilization 20times Autoclave @121℃ 30mins
Specification
Diameter 400mm,350mm,300mm,

250mm,200mm,150mm,

100mm

Material SS304, SS316L
Connection Tri-Clamp, Hose Barb

Order Information:

Application Type Material Filter Rounds Diameter Connection Polishing
F LSDH S 010 A Q M
M-BioPharma

F-Food&

Beverage

C-Chemical



LSDH-Liquid Sanitary Disc Holder S-SS304

SS-SS316L

010-1 Round



A-400mm

B-350mm

C-300mm

D-250mm

E-200mm

F-150mm

G-100mm

Q-TC Quick Connect

H-Hose Barb

M-Mirror Surface
