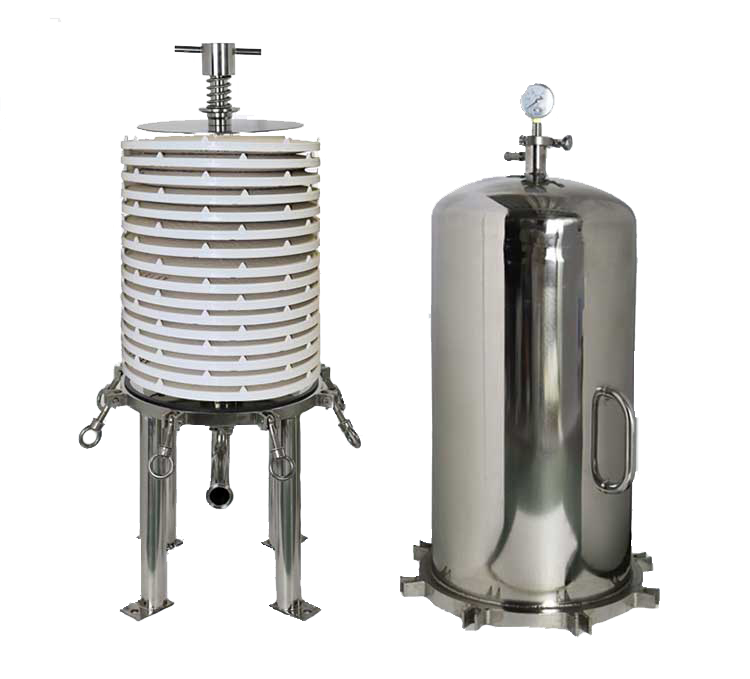

STEELFLUX™ Series Lenticular Filter Housing is widely used in the chemical, pharmaceutical and food and beverage application, which are applicable to deep filtration and modular closed systems, especially for smaller or medium volume flows.
Lenticular filter system is as versatile as filter sheet in plate & frame filter but sanitary, easy to use and easy to change out with minimal product loss and air exposure.ely used in small volume pure, sterile or protein filtration.
Feature:
- Material:SS304, SS316L
- Connection; Quick Connection Flange,
- Surface Polishing: Mirror and Sandy surface
- Adaptor: 222/226/DOE
Application:
- Fine Chemical
- Food and Beverage
- Pharmaceutical
- Digital Ink
- Organic Solvent
- Industrial Water Treatment
| Material Construction |
| Body |
SS 304/SS 316 |
| Rounds |
1stack, 2stacks, 3stacks, 4stacks |
| Sealing |
EPDM |
| InLet/OutLet |
Quick Connection |
| Filter Type |
12‘’16‘’ |
| Max. Working Pressure |
0.6Mpa @25℃ |
| Max. Working Temp. |
150℃ |
| Online Stream |
121℃ 30mins |
