STERIFLUX® Series Stainless Steel Filter------High Temperature Resistance

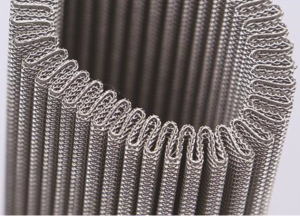

STERIFLUX® Series Stainless Steel Filter is designed with Stainless Steel woven wire mesh and fiber sintered felt media. The materials of main filter media include SS304, SS316L etc.
Feature:
- Large filtration area, wide range of filtering accuracy
- Low pressure drop, high porosity rate, excellent air permeability and filtration ability
- Good dirty holding capacity and long lifespan, Economical
- High temperature resistance, corrosion resistance etc
- Easily cleanable by conventional chemical cleaning and ultrasonic etc
Application:
- Fine Chemical
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- High Temp Water
Specification | |
Length | 10‘’ ~40‘’ |
Micron Rate | 1.0μm~300μm |
Diameter -OD | 2.36‘’(60mm)
2.48’’(63mm) 2.68’’(68mm) |
Material Construction | |
Filter Media | SS304/ SS316L |
Supporter | SS304/SS316L |
Core | SS304/ SS316L |
Oring&Gasket | EPDM
Silicone Viton |
Operation Condition | |
Max. Pressure Drop | 1.0Mpa@25℃ |
Max. Working Temp. | -70℃~200℃ |
Effective Surface Area | 0.15 ㎡/10‘’ |
Order Information:
Application | Type | Material | Length | Micron | Adaptor | Sealing |
F | PF | PLS | 10 | F | D1 | E |
M-BioPharma
F-Food&Beverage C-Chemical I-Industrial Water Treatment |
PF-Pleated Filter
SF-Sintered Filter |
PLS-304 Stainless Steel Pleated
PLSS-316L Stainless Steel Pleated PLTS-Stainless Steel Sintered |
10=10‘’
20=20‘’ 30=30‘’ 40=40‘’ |
F-1.0μm
H-5.0μm I-10.0μm J-20.0μm |
D1-DOE
C1-226/Fin
|
E-EPDM
N-NBR V-Viton |
