AQUAFLUX™ Series Oil Filter------Absorb Oil From Wells’ Water
Products
AQUAFLUX™ Series Oil Filter------Absorb Oil From Wells’ Water

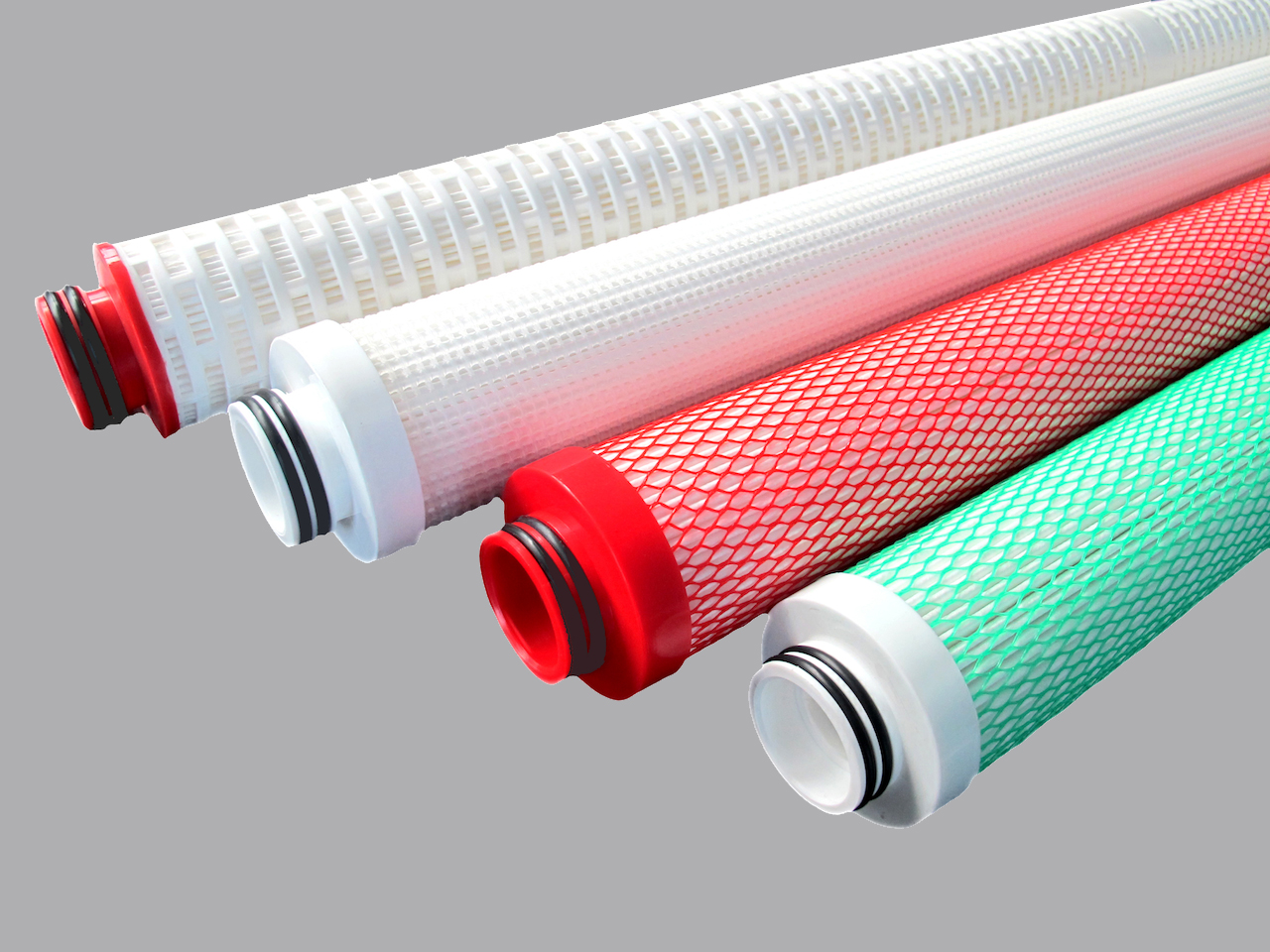

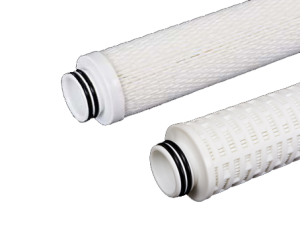

AQUAFLUX™ Series Oil Pleated Cartridge Filter is made by glass fiber material and special structure. It would be mainly used Oil field filtration. As glass fiber have good performance to absorb oil from wells’ water, It have cage and net as option for different application.

Feature:

  1. Glass Fiber + Polypropylene Material
  2. Good oil absorb feature
  3. High flow rate and dirty holding capacity

Application:

  • Fine Chemical
  • Amine
  • Petro Chemical
  • Solvent based
  • paints & coatings
  • High Temp Water
Material Construction
Filter Media PP/Glass Fiber
Cage PP Cage/PET Mesh
Core PP/SS 304/SS 316
End Cap PP/ABS
Specification
Length 20’’,40’’,60’’
Micron Rate 1μm~20μm
Diameter -OD 152mm
Operation Condition
Max. Pressure Drop 0.5Mpa @25℃

0.3Mpa @65℃
Max. Working Temp. 80℃
Change-Out Pressure Drop 0.25Mpa

Order Information：

Application Type Material Length Micron Adaptor Cage Core Sealing
I OF P 10 F D1 N P E
F-Food&

Beverage

C-Chemical

I-Industrial Water Treatment

 OF-Oil Filter P-Polypropylene

G-Glass Fiber

 10-10‘’

20-20‘’

30-30‘’

40-40‘’

 C5-0.5μm

F-1.0μm

H-5.0μm

I-10.0μm

J-20.0μm

K-50.0μm

 D1-DOE

B1-222/Flat



 N- PET Mesh

C-PP Cage

 P-PP core

4S-304 SS

6S-316LSS

 E-EPDM

N-NBR

V-Viton
