AQUAFLUX™ Series Liquid Bag Filter------ Polypropylene, Polyester and Nylon Mesh
Products
AQUAFLUX™ Series Liquid Bag Filter------ Polypropylene, Polyester and Nylon Mesh

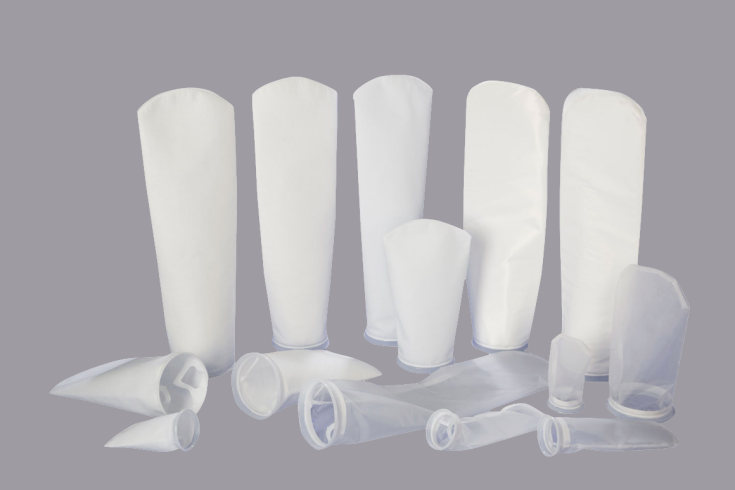

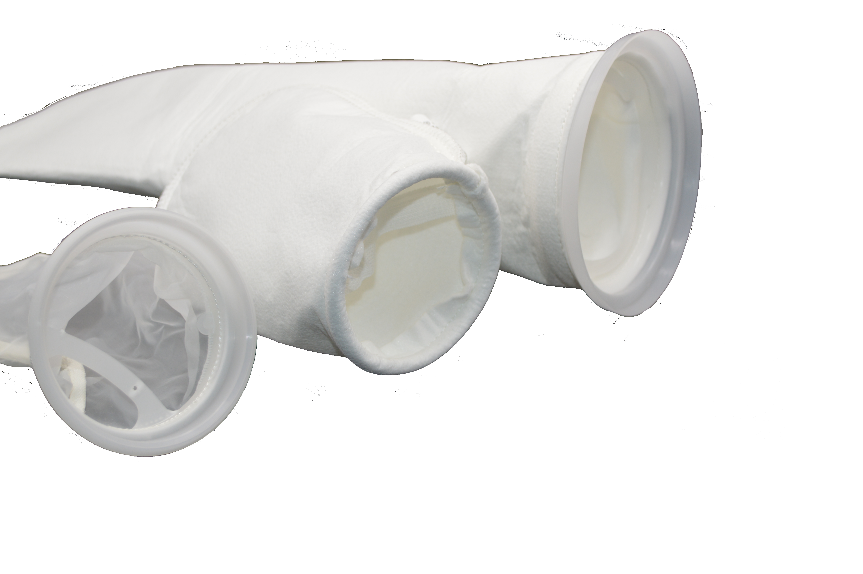

AQUAFLUX™ Series Liquid Bag Filter is made by Polypropylene, Polyester and Nylon mesh material. They are suitable for a wide range of liquid applications, such as the filtration of water, edible oil, juices, sugar, dairy, painting oil, wine and so on.

Feature:

  1. Widely Chemical compatibility
  2. Large dirty holding capacity
  3. Material meet NSF and FDA requirement

Application:

  • Sea Water Desalination
  • Amine
  • Petro Chemical
  • Solvent based
  • paints & coatings
  • Power Plant
Material Construction
Filter Media PP/PE/NMO
Micron Rate 1μm~150μm
Gasket PP/SS 304/SS 316
Handle F type H type
Size #1, #2, #3, #4
Item Outside Dia Length Flux
Size #1 7” 17” 20m3/h
Size #2 7” 32” 40m3/h
Size #3 4” 9” 6m3/h
Size #4 4” 15” 12m3/h

Order Information：

Application Type Material Size Micron Core Sealing
I BF PO 01 F P 1
F-Food&Beverage

C-Chemical

I-Industrial Water Treatment

 BF-Bag Filter PO-Polypropylene

PE-Polyester

NMO-Nylon Mesh

 01-Bag Szie#01

02-Bag Szie#02

03-Bag Szie#03

04-Bag Szie#04

 F-1.0μm

H-5.0μm

I-10.0μm

J-20.0μm

K-50.0μm L-100μm

M-150μm

 P-PP core

4S-304 SS

6S-316LSS

 1-F Type

2-H Type

3-L Type
bag filter-1 bag filter-2 bag filter-3

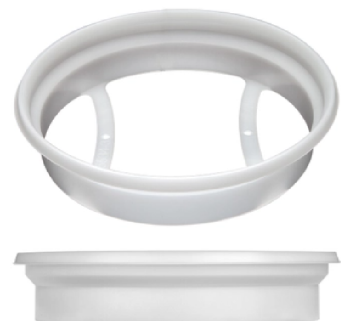

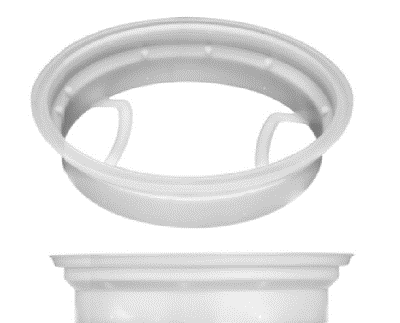

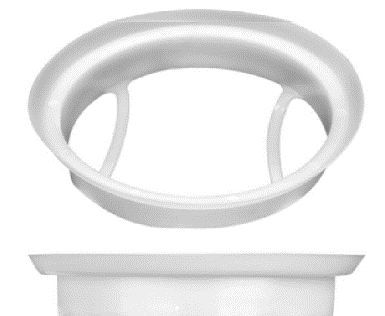

                        F Type                              H Type                               L Type
