AQUAFLUX™ Series Ultrglas-A Filter Cartridge Filter are designed using various resin fiber and controlled gradient densities for various micron ratings, lower replacement cycles, optimum filtration efficiencies and consistent performance between production runs.

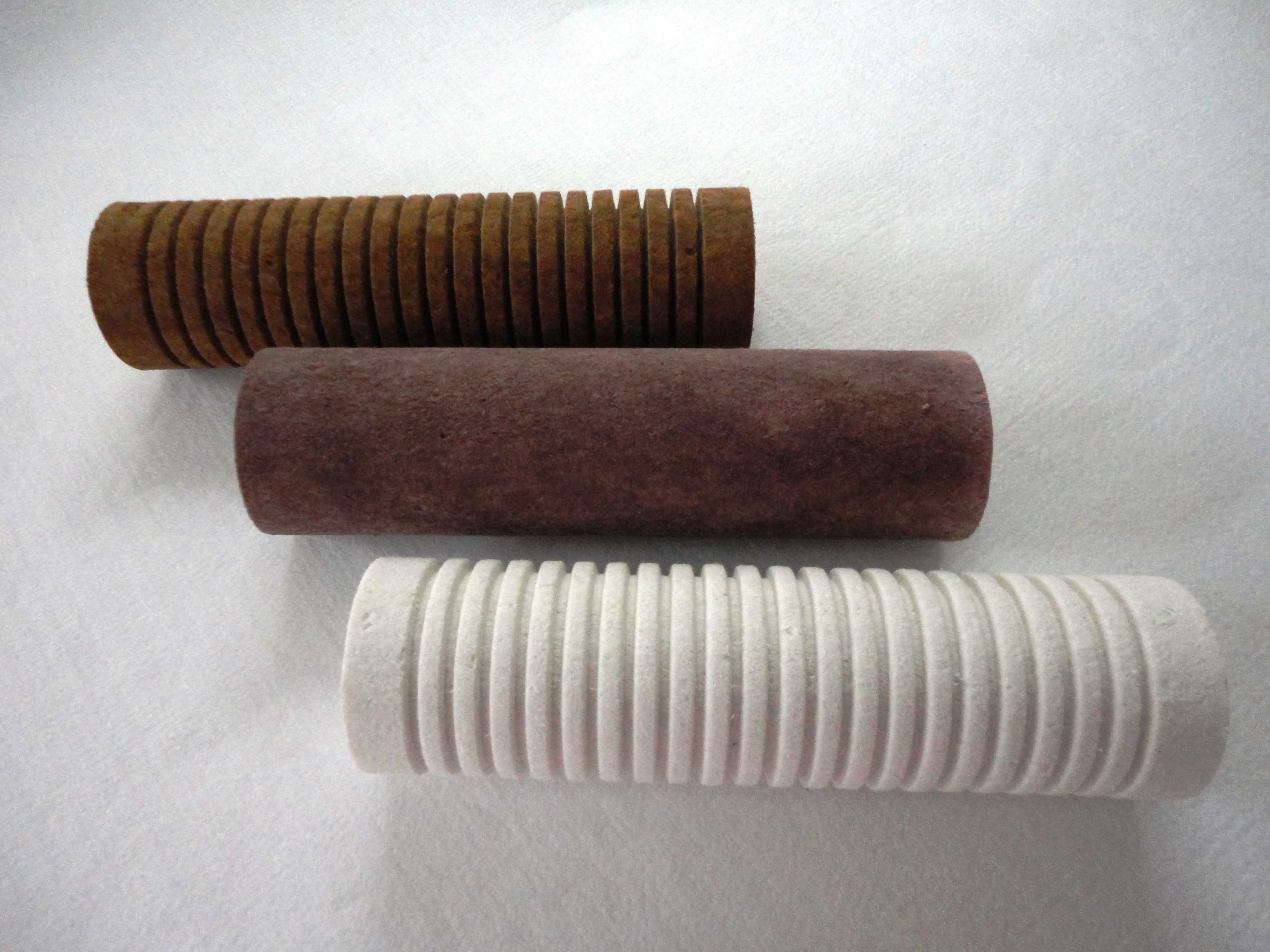

Other design feature are a grooved surface, which offers increased effective surface area and dirt holding capacity. Also an ungrooved surface, which provides excellent gel type contaminate removal.
All of our cartridges are available with or without center cores.These cores will allow our cartridges to withstand differential pressures from 50psi to 150psi.
Features
- Broadest Chemical Compatibility
- Highest Operating Temperature
- Option of Metal, Plastic or No Core
- Range of 50psi to150psi Different Pressure
- Efficiency Rating from 0.5um to 175um
- Available with Optional End Treatments
- Broadest Range of Applications
- Low Different Pressure & Extended cartridge life
Application:
- Fine Chemical
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- High Temp Water
| Max. Operation temperature: |
145°C |
| Change-Out
Pressure Drop |
35psi |
|
Feed Water Pressure: |
No Core |
45 psi |
| Plastic Core |
70psi |
| Tin Plate Core |
150psi |
| Stainless Steel Core |
100psi |
