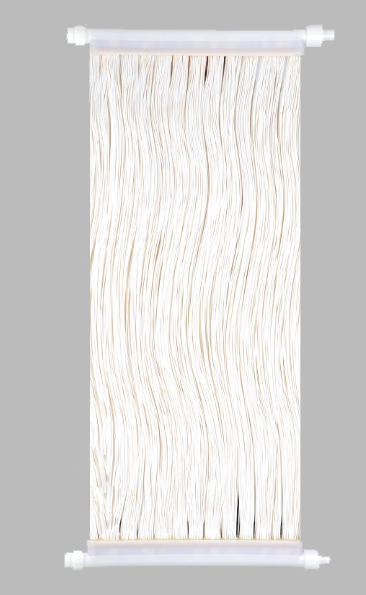

PVDF Hollow Fiber MBR Element

MBR Membrane---Reinforced MBR

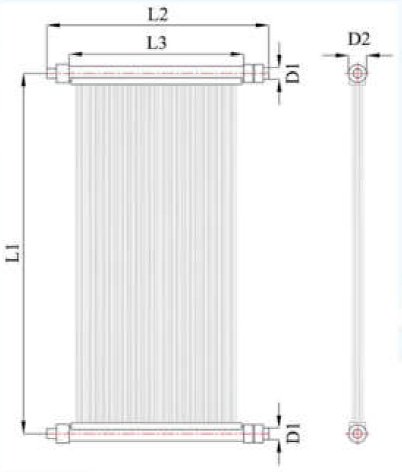

Item L1 L2 L3 D1 D2
MBR 10 1025mm 620mm 480mm DN20 50mm
MBR 15 1525mm 620mm 480mm DN20 50mm
MBR 20 2025mm 620mm 480mm DN20 50mm

Feature:

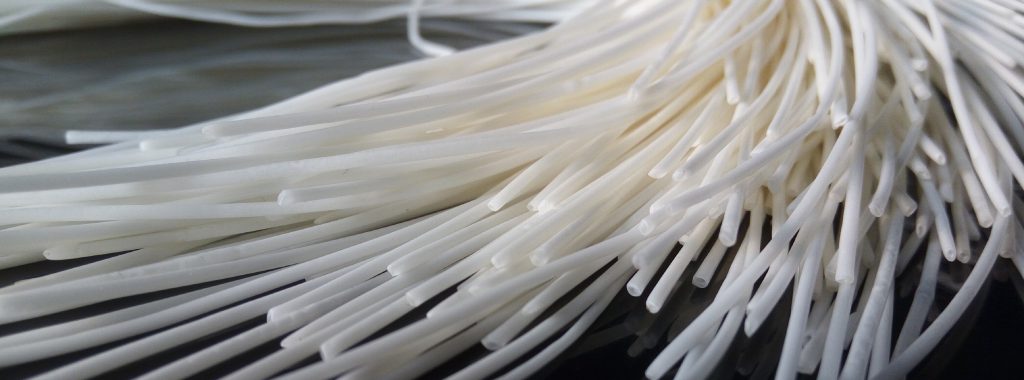

  1. MBR used reinforced PVDF hollow Fiber membrane, anti-contamination, easy to wash and longer Lifespan
  2. MBR sealed by separated distribution, reasonable distance to ensure flow rate and reduce block risk by sludge;
  3. Patent MBR bottom sealing technology to avoid membrane broken

Specification MBR 10 MBR 15 MBR 20
Data Base Element Dimension mm 620*1025 620*1025 620*1025
Surface Area㎡ 10 15 20
Material Reinforced PVDF
Pore Size 0.05~0.1um

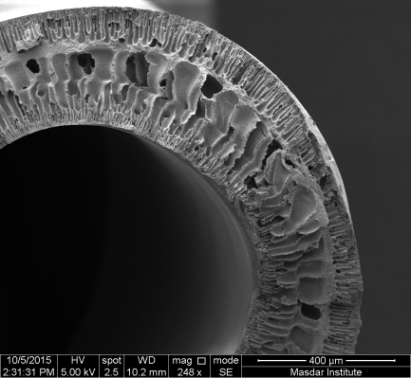

Fiber Dimemsion 1.0/2.2
Cage material ABS
Seal material Epoxy Resin
Operation Data Store material Dry or Wet
Operation Vaccum Press
Work Pressure -5~-50Kpa
Design Flux 10~25
Flux mean Permeate 8mins/Stop 2mins
Recycle time 10mins
Backwash mean Air Water Wash
Backwash Time 30~120sec
Backwash Pressure 60Kpa

Order Information:

Model# Lengh Membrane Surface Area Connection
MBR-10 1.0m Reinforced PVDF 10㎡ Screw Joint
MBR-15 1.5m Reinforced PVDF 15㎡ Screw Joint
MBR-20 2.0m Reinforced PVDF 20㎡ Screw Joint
