AQUAFLUX™ Series Melt Blown------100% Polypropylene Material

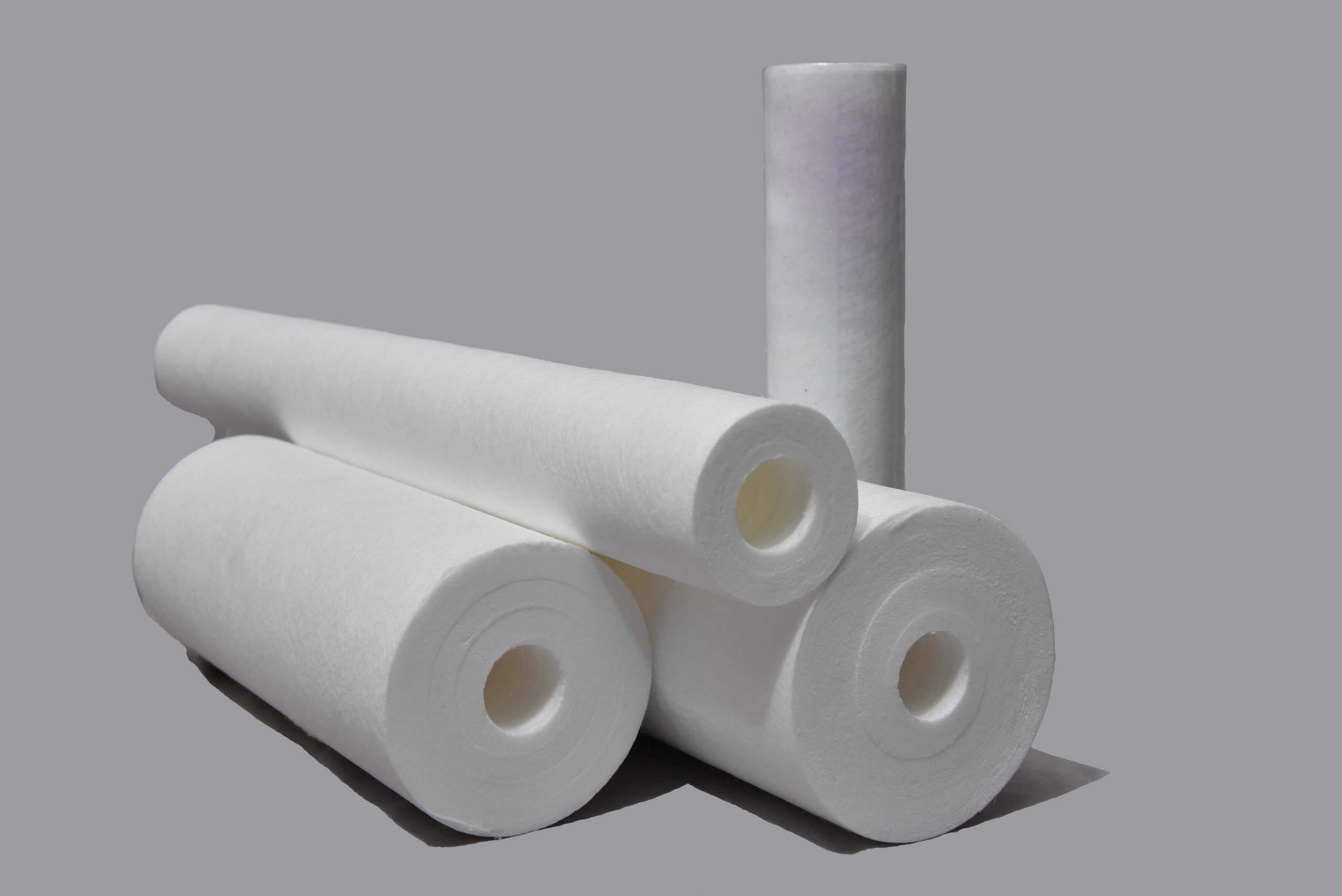

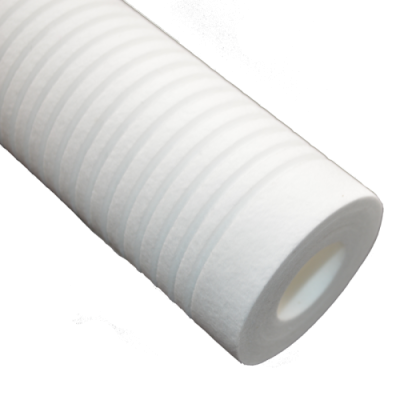

AQUAFLUX™ Series Melt Blown cartridge filter is made by 100% Polypropylene material. Its 3 Nano fiber layer provide absolute efficiency rate. It also own great dirty holding capacity and high flow rate. Meet NSF and FDA requirement.
Feature:
- 100% Polypropylene Material
- 3 Nano fiber layers for better lifespan
- NSF,FDA certificates
Application:
- Sea Water Desalination
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- Power Plant
| Material Construction | |
| Filter Media | 100% PP |
| Core | None / PP |
| Specification | |
| Length | 5’’~70’’ |
| Micron Rate | 1μm~150μm |
| Diameter -OD | 63mm, 114mm, 152mm |
| -ID | 28mm, 30mm, 114mm |
| Operation Condition | |
| Max. Pressure Drop | 0.41Mpa@30℃
0.35Mpa@50℃ 0.20Mpa@70℃ 0.12Mpa@82℃ |
| Max. Working Temp. | 82℃ |
| Change-Out ∆P | 0.25Mpa |
