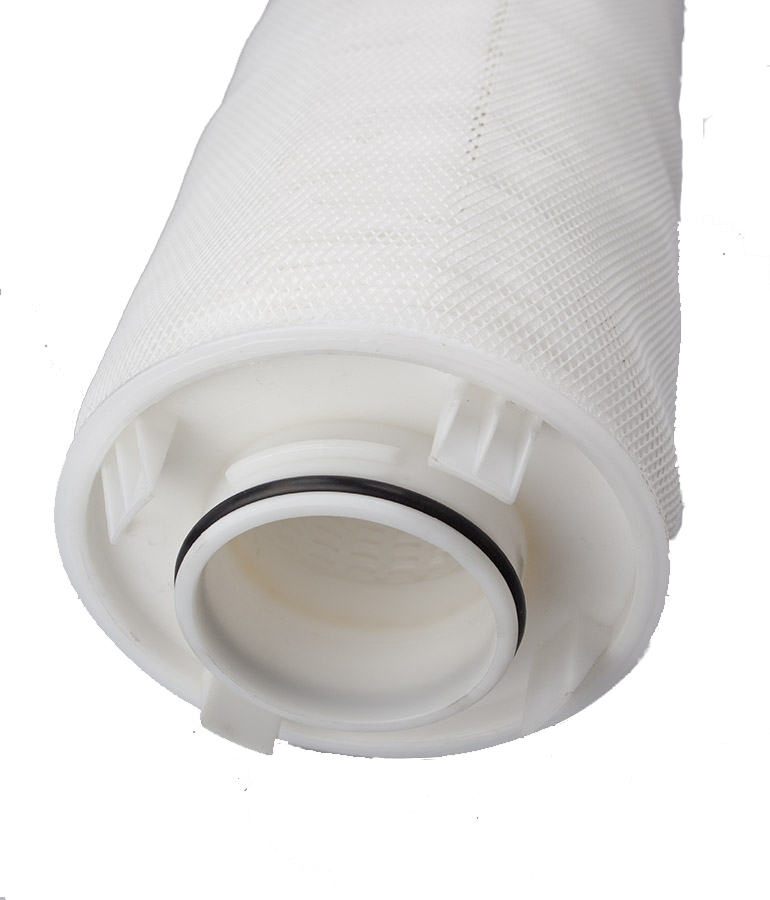

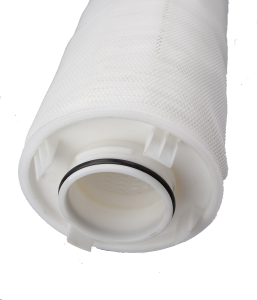

SUPFLUX-M Series Outer High Flow Cartridge Filter
Products
SUPFLUX-M Series Outer High Flow------Radial Pleated structure with Larger Surface

SUPFLUX-M Series Outer High Flow cartridge filter is designed with ergonomic and super lock for reducing leak risk. As outside diameter 6’’ large surface pleated cartridge filter, It own great dirty holding capacity and high flow rate.

Feature:

  1. Ergonomic and super lock design
  2. Fewer cartridge and less time to assemble
  3. High flow rate and efficiency
  4. Large surface area for longer lifespan

Material Construction:

Filter Media PP Pleated/GF Pleated
Supporter PP No Woven Fiber
Cage PP Cage
Specification
Length 20’’,40’’,60’’
Micron Rate 1μm~20μm
Diameter -OD 152mm, 165mm

Operation Condition:

Max. Pressure Drop 0.35Mpa@25℃

0.25Mpa@120℃
Max. Working Temp. 80℃
Change-Out ∆P 0.25Mpa

Order Information:

Application Type Material Length Micron Adaptor Sealing Cage
C HF MP 40 F S S PP
F-Food& Beverage

C-Chemical

I-Industrial Water Treatment

 HF-High Flow MP1-PP Norminal

MP2-PP Absolute

MG-Glass Fiber

MHP-Radial Pleated

 20-20‘’

40-40‘’

60-60‘’

 C-0.45μm

F-1.0μm

H-5.0μm

I-10.0μm

J-20.0μm

O-40.0μm

P-60.0μm

 S-Single Oring

C-226Double Oring

 S-Silicone

E-EPDM

N-NBR

V-Viton

U-U Cup

 PP= PP Cage

NC= Net Cage*

GF=Glass Filled Cage

*Net Cage: MHP Type Only

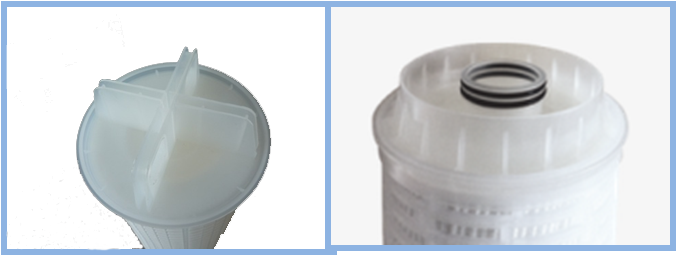

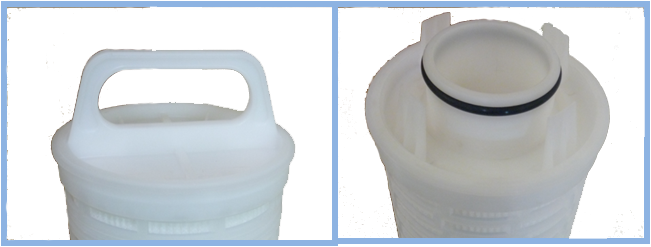

                              Single Oring                                    226 Double Oring
