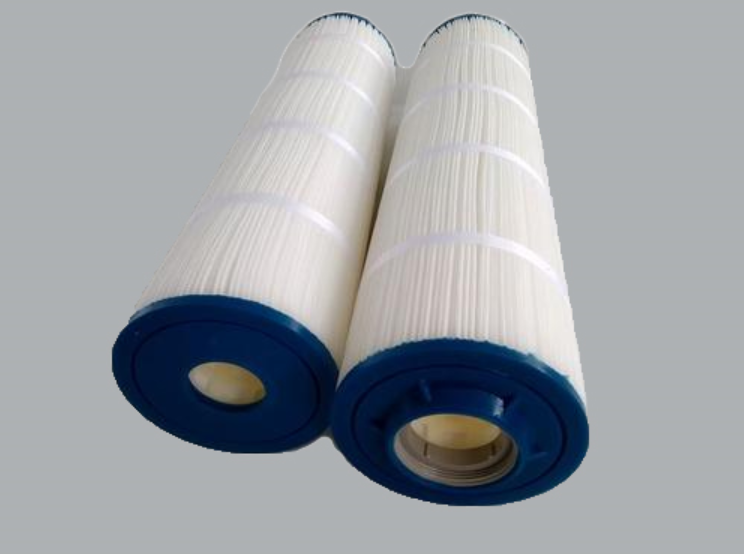

AQUAFLUX™ Swimming Pool Cartridge Filter

PE Pleated Cartridge Filter---Swimming Pool Pleated Cartridge Filter

AQUAFLUX™ Series PE Swimming Pool pleated cartridge filter with good cost and performance rate, Ideal for per filtration and clarification in swimming pool application.

Feature:

  1. High Flow filter for fewer change-outs and lower maintenance cost
  2. Pleated media provides higher flow rate and lower initial pressure drop
  3. High surface area provides higher loading capacity for longer lifespan
  4. Thermal welding process and free of any adhesive
Material Construction
Filter Media Polyester

Glass Fiber

Supporter PP No Woven Fiber
Core PP
Specification
Length 9-5/8”(245mm)

19-1/2”(459mm)

30-3/4”(781mm)

Micron Rate 0.35μm~150μm
Diameter -OD 7-3/4”(197mm)
Operation Condition
Max. Pressure Drop 0.35Mpa@25
0.25Mpa@120
Max. Working Temp. 60
Charge Out Pressure Drop 0.25Mpa

Order Information

PEP 09 F O P S
PEP-Polyester pleated

GP-GlassFiber pleated

09=

9-5/8’’

19=

19-1/2‘’

30=

30-3/4‘’



3C-0.35μm

F-1.0μm

H-5.0μm

I-10.0μm

O-DOE



P-PP core

4S-304 SS

6S-316LSS

S-Silicone

E-EPDM

N-NBR

V-Viton
