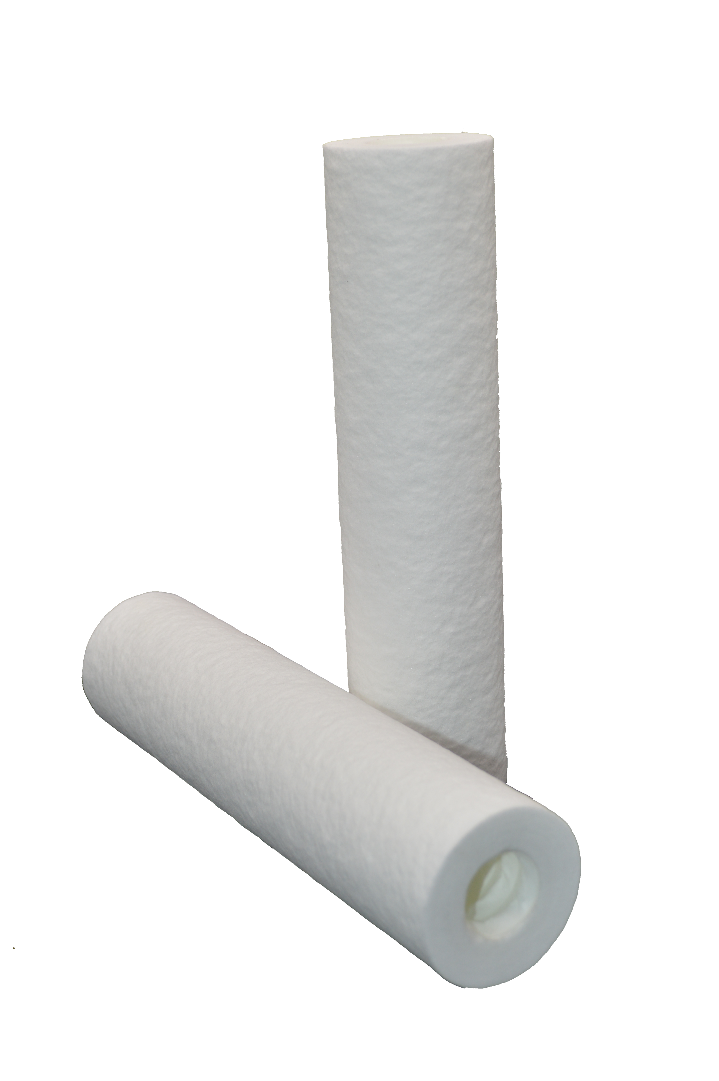

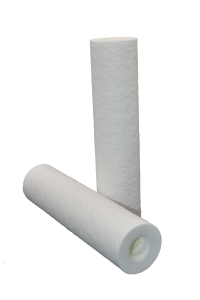

AQUAFLUX™ Series Nylon Melt Blown------Polyamide Material
AQUAFLUX™ Series Nylon Melt Blown cartridge filter is made by Polyamide material. It provide consistent performance than Polypropylene. It owns better high temperature and chemical solvent capacity characteristic.
Feature:
- Perfect Chemical and anti-thermal capability Max. 125℃
- No binders and additives
- High dirty holding capacity
- Meet NSF, FDA request material
Application:
- Fine Chemical
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- High Temp Water
Material Construction | |
Filter Media | Polyamide |
Core | None/SS |
Specification | |
Length | 5’’~70’’ |
Micron Rate | 1μm~150μm |
Diameter -OD | 63mm |
-ID | 28mm |
Operation Condition | |
Max. Pressure Drop | 0.58Mpa@25℃
0.45Mpa@65℃ 0.32Mpa@95℃ |
Max. Working Temp. | 125℃ |
Change-Out Pressure Drop | 0.25Mpa |
Order Information:
Application | Type | Material | Length | Micron | Adaptor | Core | Sealing |
I | SP | N | 10 | C | D1 | N | S |
C-Chemical
I-Industrial Water Treatment |
SP-General Melt Blow | N-Nylon
|
5-5‘’
10-10‘’ 20-20‘’ 30-30‘’ 40-40‘’ 50-50‘’ 60-60’’ 70-70’’ |
C5-0.5μm
F-1.0μm G-2.0μm H-5.0μm I-10.0μm J-20.0μm K-50.0μm L-100μm M-150μm |
D1-DOE
B1-222/Flat B3-222/Fin C1-226/Fin C3-226/Flat |
S-SS core
N-No Core |
S-Silicone
E-EPDM N-NBR V-Viton |
