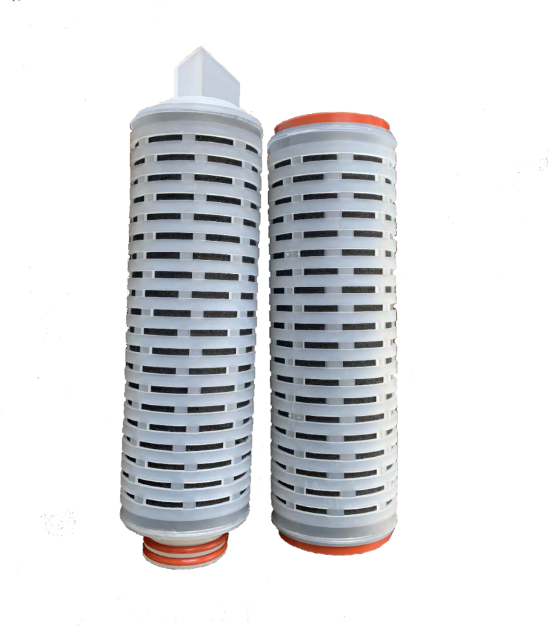

AQUAFLUX™ Series Impregnated Carbon-----Ideal for Pre Filtration
AQUAFLUX™ Series Impregnated carbon cartridge filter combine the performance of depth filtration with absorption of active carbon. Ideal for per filtration and clarification in different application.general PP media filter.
Feature:
- Excellent impregnated active carbon filter media for absorb smell, odor, pigement, VOC and organic substance.
- Different filtration ratings to meet various application requirement
- Step deep filtration construction, longer service life, lower cost
- Thermal welding process and free of any adhesive
- No hazardous substances releasing
Application:
- Fine Chemical
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- High Temp Water
Specification | |
Length | 5’’~50’’ |
Micron Rate | 0.1μm~10μm |
Diameter -OD | 65mm, 69mm, 83mm, 114mm |
Material Construction | |
Filter Media | Impreganted Carbon |
Supporter | No Woven Fiber |
Core | PP/SS 304/SS 316 |
Operation Condition | |
Max. Pressure Drop | 0.35Mpa@25℃ |
0.20Mpa@75℃ | |
Max. Working Temp. | 80℃ |
Change-Out Pressure Drop | 0.25Mpa |
Order Information:
Application | Type | Material | Length | Micron | Adaptor | Core | Sealing | |||||||
C | RF | IC | 10 | F | D1 | P | S | |||||||
F-Food&
Beverage C-Chemical I-Industrial Water Treatment |
RF-Rolled Filter | IC-Impregnated Carbon
P-Polypropylene |
05=5‘’
10-10‘’ 20-20‘’ 30-30‘’ 40-40‘’ 50-50‘’ |
F-1.0μm
G3-3.0μm H-5.0μm I-10.0μm |
O-DOE
2F-222/Fin 2T-222/Flat 6F-226/Fin 6T-226/Flat |
P-PP core
4S-304 SS 6S-316LSS |
S-Silicone
E-EPDM N-NBR V-Viton F-PTFE |
