Products
AQUAFLUX™ Series PBT Filter------ Benzene etc. Aromatic Hydrocarbons Solvent

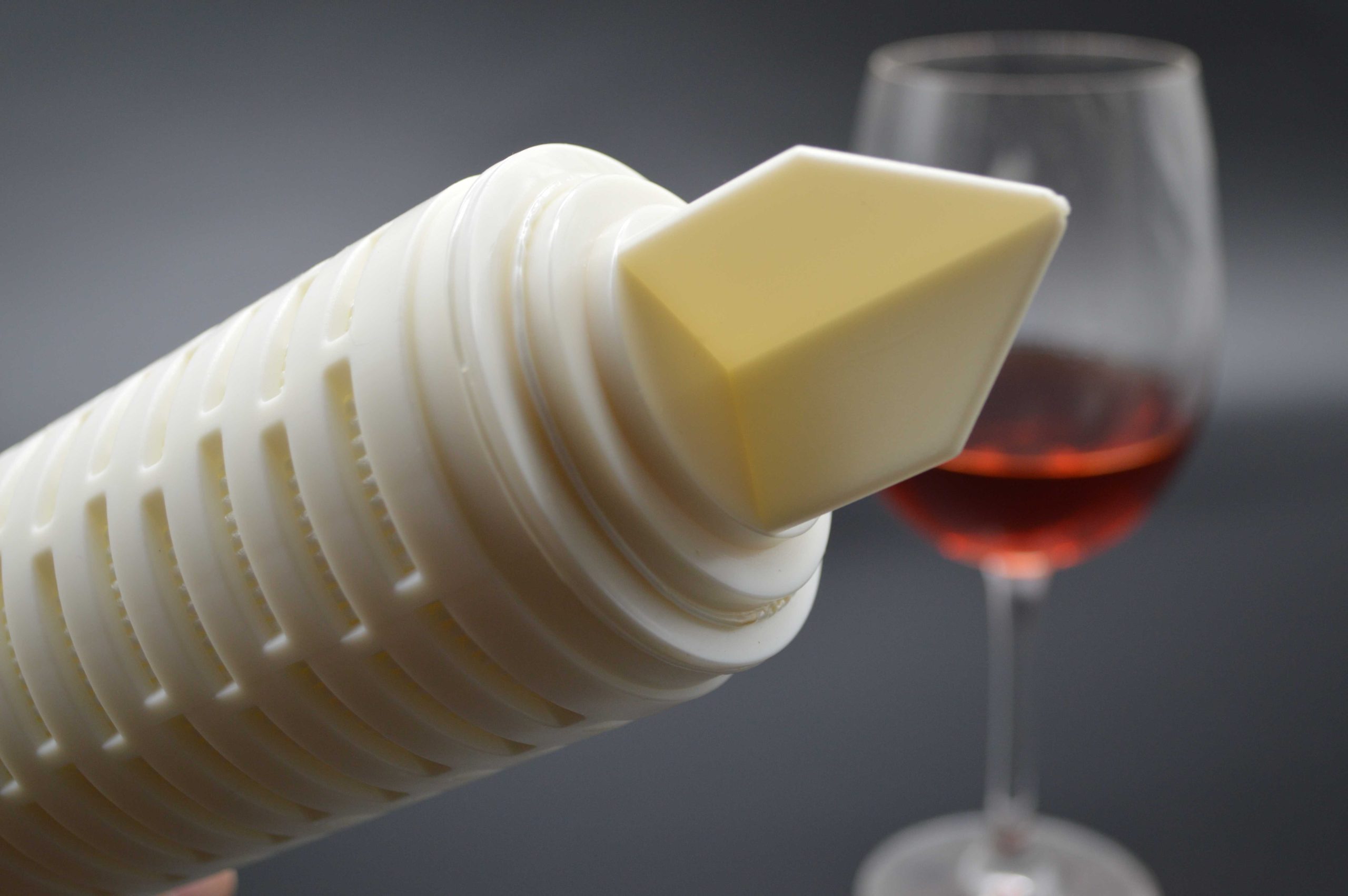

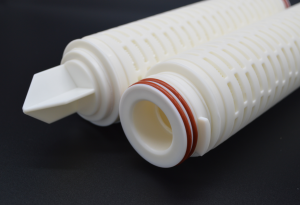

AQUAFLUX™ Series PBT pleated cartridge filter are mainly designed for Acid chemical, Petro Oil industrial etc. It could filter benzene, methylbenzene etc. aromatic hydrocarbons solvent. Meanwhile, it has a great performance on high temperature and high pressure drop, which provide a longer lifespan than general PP media filter.
Feature:
- 100% PBT material for benzene, methylbenzene etc. aromatic hydrocarbons solvent
- 98% absolute efficiency meet various application requirement
- Higher 120℃ temperature and higher 4.2bar pressure drop
- Thermal welding process and free of any adhesive
Application:
- Fine Chemical
- Amine
- Petro Chemical
- Solvent based
- paints & coatings
- High Temp Water
Material Construction | |
Filter Media | PBT |
Supporter | PBT |
Core | PBT |
Specification | |
Length | 10’’~40’’ |
Micron Rate | 0.1μm~10μm |
Diameter -OD | 69mm |
Operation Condition | |
Max. Pressure Drop | 0.42Mpa@25℃ |
0.25Mpa@75℃ | |
Max. Working Temp. | 120℃ |
Change-Out Pressure Drop | 0.25Mpa |
Order Information:
Application | Type | Material | Length | Micron | Adaptor | Core | Sealing |
C | PF | PBT | 10 | F | D1 | T | S |
F-Food&Beverage
C-Chemical I-Industrial Water Treatment |
PF-Pleated Filter | PBT-PBT Pleated | 10-10‘’
20-20‘’ 30-30‘’ 40-40‘’ |
A-0.1μm
B-0.2μm B2-0.22μm C-0.45μm D-0.65μm E-0.8μm F-1.0μm G-2.0μm H-5.0μm I-10.0μm |
D1-DOE
B1-222/Flat B3-222/Fin C1-226/Fin C3-226/Flat
|
T-PBT core
4S-304 SS 6S-316LSS |
S-Silicone
E-EPDM N-NBR V-Viton F-PTFE EV-Encapsuled Viton ES-Encapsuled Silicone |
